7 inch 2-wire TFT color monitor indoor station VTH1550CHW-2
Rating:
Be the first to write a review!

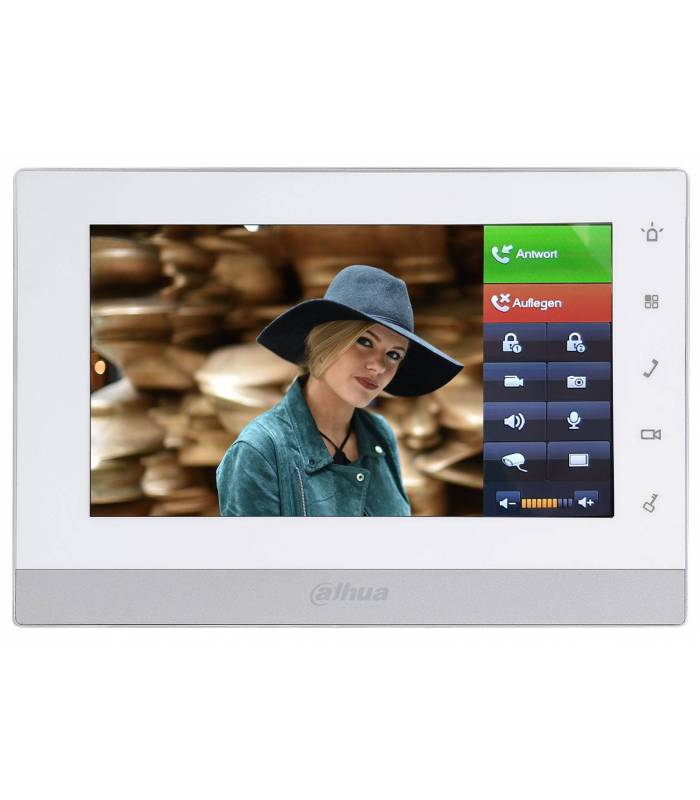

Indoor station: 7 inch tFT color monitor with capacitive touchscreen

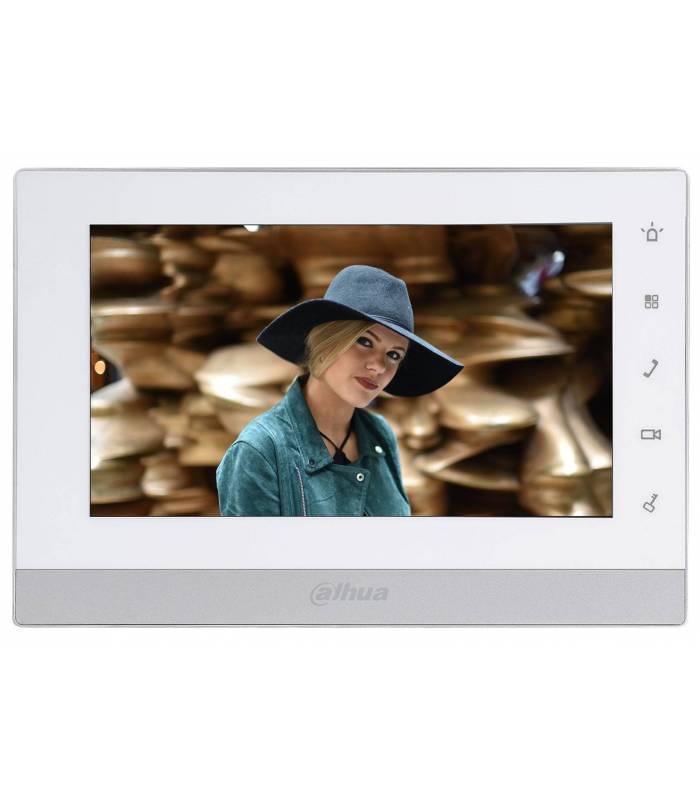

Via the color monitor you will be informed about visitors after the bell has been pressed at the entrance and a live image will be displayed on the indoor station.
Related
Colour monitor indoor station for single or multi-family houses
The indoor station is the central control unit of the door intercom. Via the color monitor you will be informed about visitors after the bell has been pressed at the entrance and a live image will be displayed on the indoor station. The connection of the inner station is also via 2 wire, so that no further lines are necessary for operation and communication.

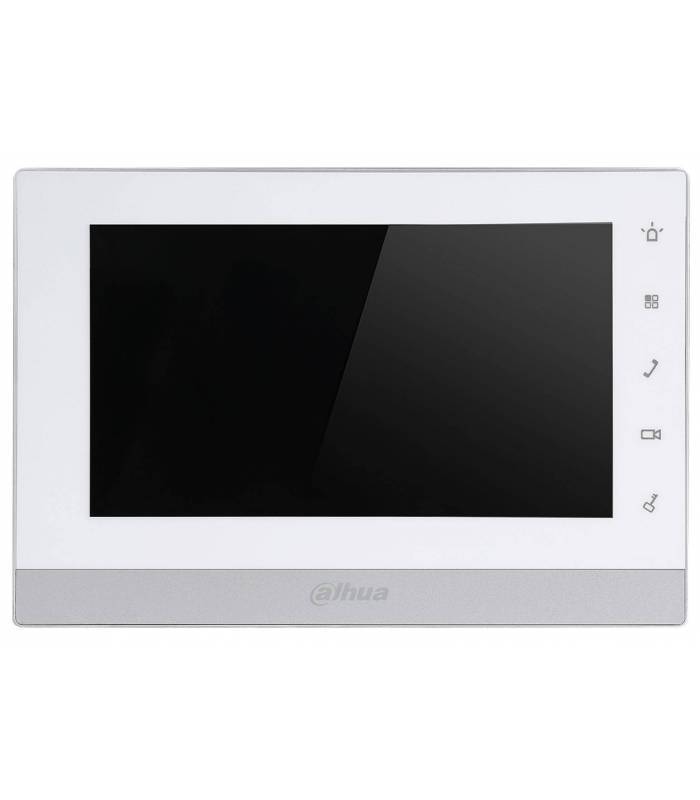

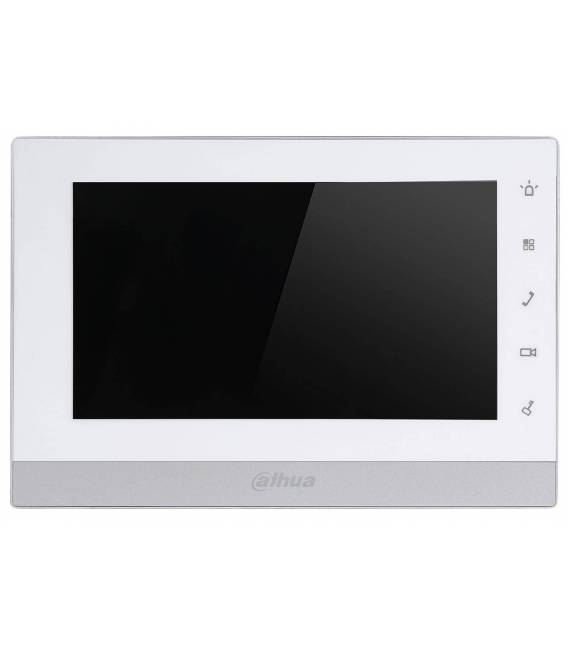

Color monitor: 7" large TFT color monitor with capacitive touchscreen
- bi-directional counter-talk possible
- IPC Monitoring
- Alarm integration
- with Micro SD card slot, max. 32 GB
- Voice and image recording & snapshot possible (SD card required)

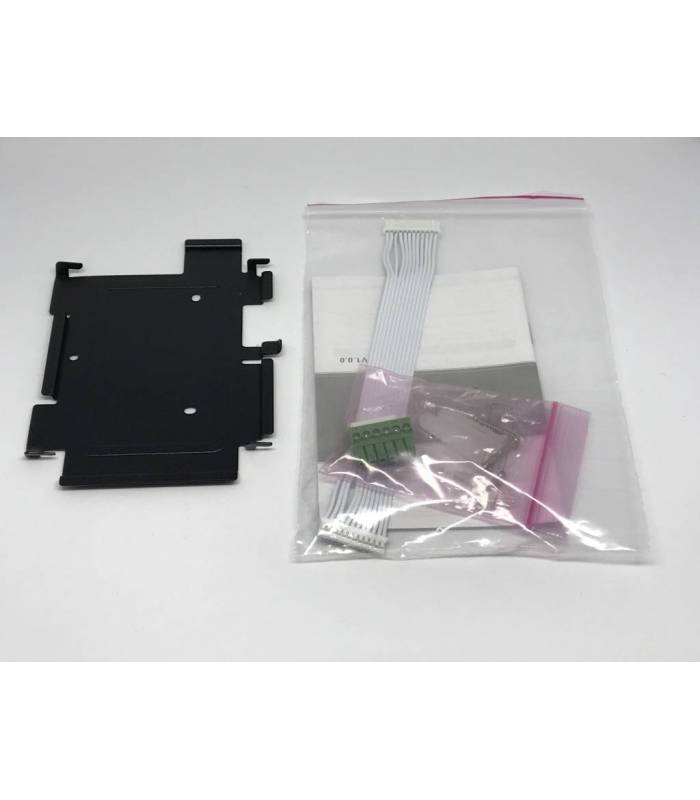

- with mounting adapter
- Connection of an external gong possible (via enclosed ribbon cable)
Technical data:
| System | |
| Main Processor | Built-in microcontroller |
| Operating system | Embedded LINUX operating system |
| Video | |
| Compression | H.264 |
| Audio | |
| Audio compression | G.711 |
| Audio input | Directional microphone |
| Audio output | Built-in loudspeaker |
| Communication | supports bidirectional speaking |
| Display | |
| LCD Display | 7-inch color monitor, 800x480 |
| Modes | |
| Entrance | touch-sensitive buttons (emergency, protection, video speaking, surveillance, unlock), touchscreen technology |

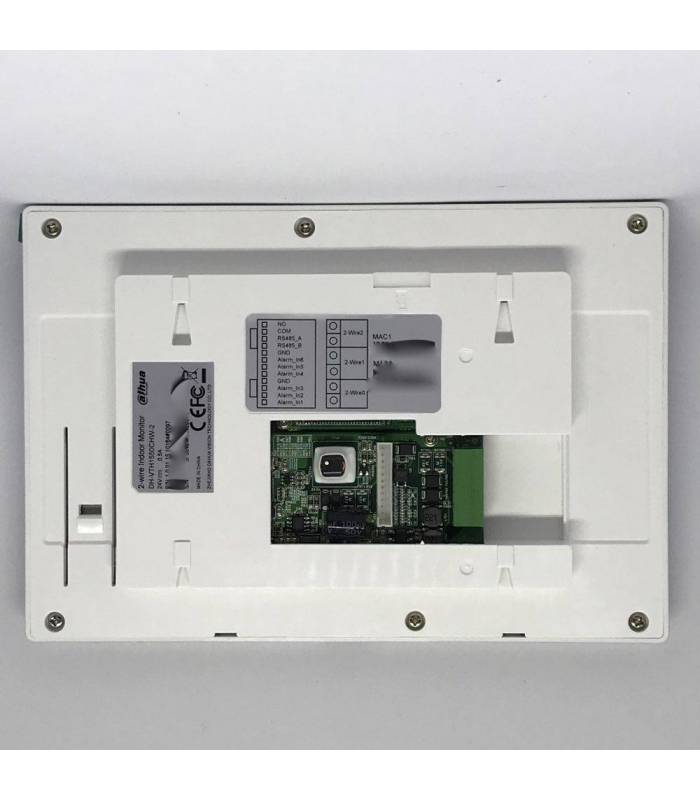

| Interfaces | |
| Alarm input | 6 channels, input are supported |
| Alarm output | underused 1 channel, output |
| RS485 | 1 |
| Network | |
| Ethernet | 10M/100Mbps self-fitting |
| Network protocol | Tcp |
| General | |
| SD card slot | 1x, max. 32GB capazia |

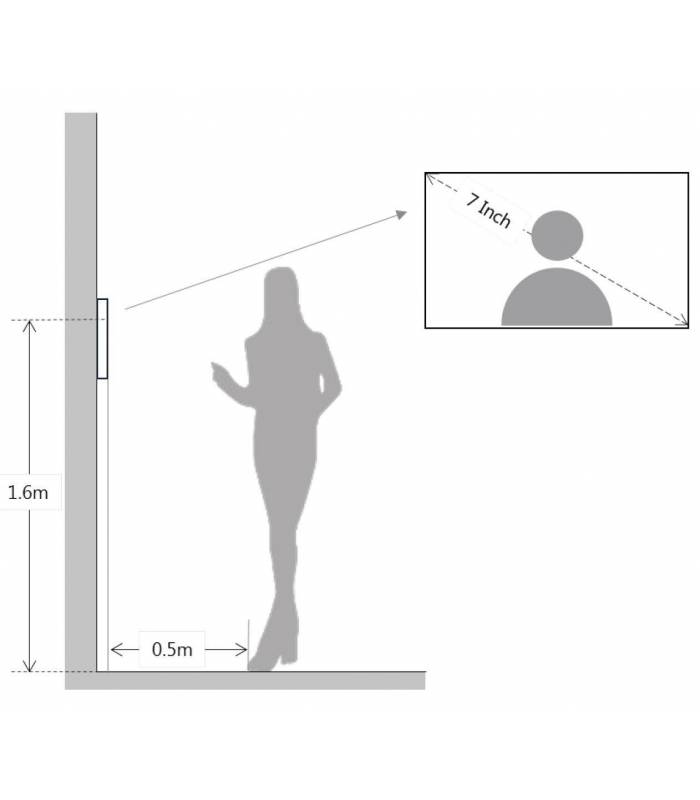

| Installation | Surface |
| Power supply | DC24V, by direct supply Network distributor VTNC3000A |
| Power consumption | Standby = 1.5W, operation =7W |
| Environment | -10°C ------------------------------------------------------------ |

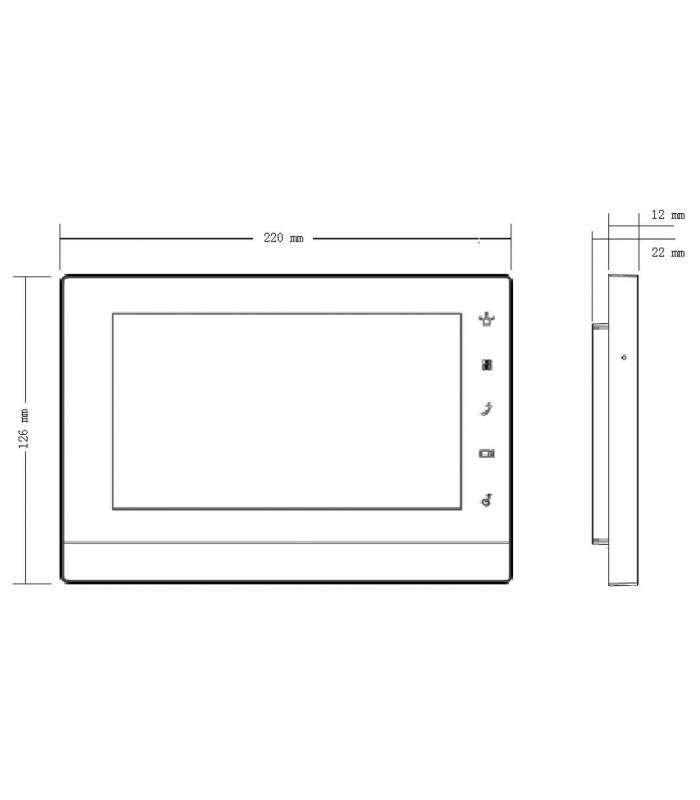

| Dimensions | 200.5 mm × 136.5 mm × 22mm |
| Weight | 0.8 kg |
Warning
Electronic consumers may only be installed by suitably qualified specialists.
Sale only to traders.
