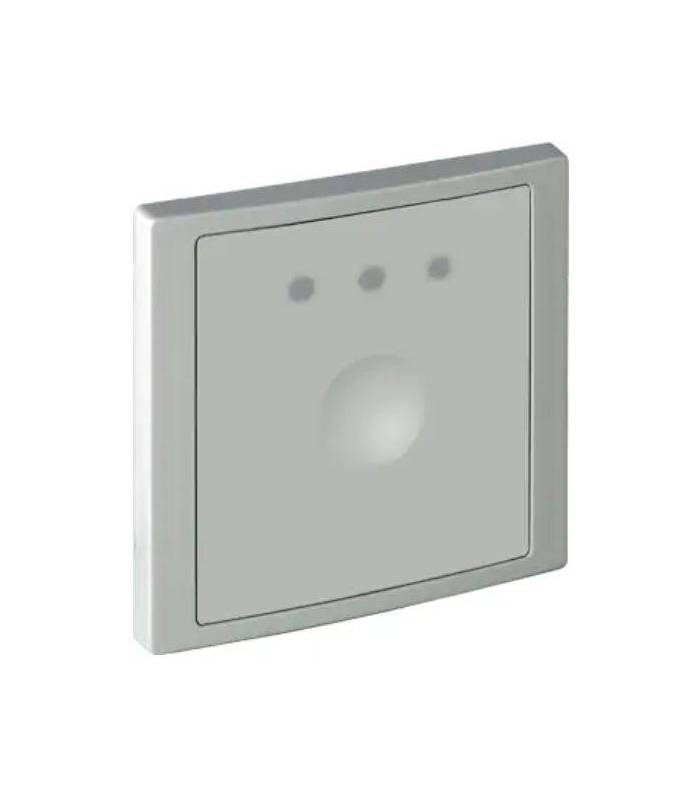

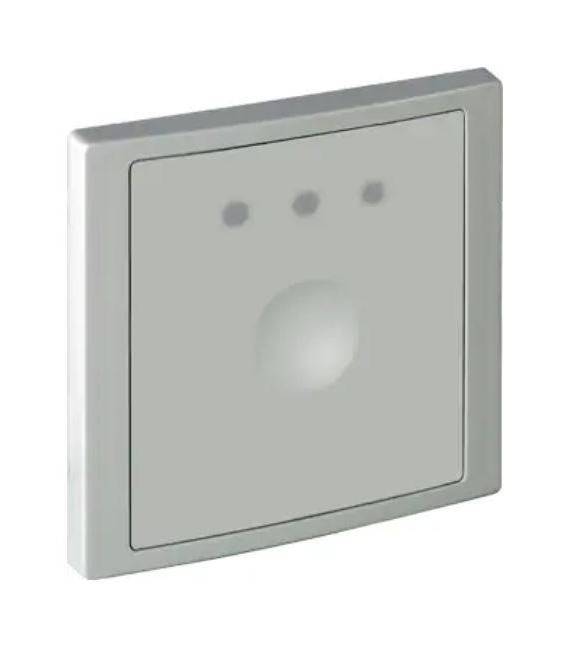

LEGIC Advant Reader Insertic RS-485 Interface

Non-contact reader module without keyboard, flush-mounted. Suitable in switch boxes with 60 mm screw spacing. Easy operation and clear feedback on bright light-emitting diodes and integrated buzzer.

- RS-485 interface (module bus protocol)

- Reading distance: approx. 5cm

- reads LEGIC cards

- large input voltage range (8 to 30 V DC)

- extremely flat construction

Technical data:

• Operating rated voltage 12 V DC
• Operating voltage range 8 to 30 V DC
• Power consumption max. 2.5 W
• Interface RS-485
• Reading technology LEGIC advant
• Protection according to EN 60529 IP54 (mounted)
• Umworld class according to VdS III
• Operating temperature -25°C to +60°C
• Storage temperature -30°C to +70°C
• Dimensions (W x H x D) 81 x 81 x 11 mm
• Dimensions (x D) Housing, built-in part 56 x 24 mm
• Colour grey, similar to RAL 7047
