Fan Coil Thermostat 2/4 Tube

Fan Coil Thermostat

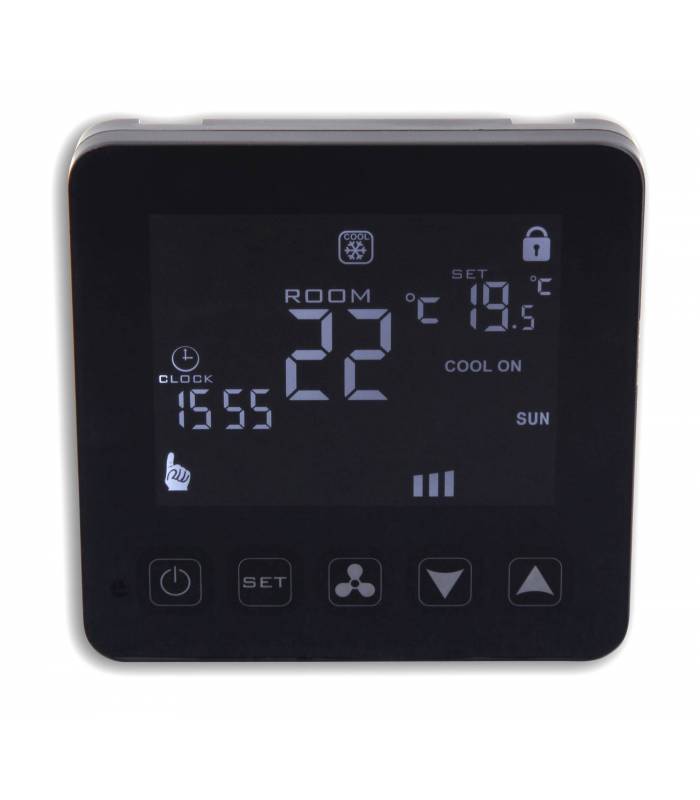

A Fan Coil thermostat with a high-quality design is used for individual temperature control in residential, industrial and business premises. It is designed for fan convectors with 2/4 pipe system. The Fan Coil Thermostat has a high-quality LCD display that makes the single room controller easy and intuitive to use. 4 switching times for each individual day of the week can be explicitly set via a timer. In addition, the Fan Coil thermostat can be programmed to be switched on only at certain times, either once or daily. The Fan Coil Thermostat supports the following 3 modes, which can be adjusted according to the need: heating, cooling and ventilation.

Technical data:

• Operating voltage: AC 230V
• Switching current: max. 3A per switching output
• Setpoint adjustment: +5...+35°C
• Ambient temperature: 0..+50°C
• Temperature sensor: Air sensor NTC
• Temperature setting in increments: ± 0.5°C
• Display accuracy: 0.5°C
• Display: LCD Touch with backlight
• Data retention in the event of a power failure
• Dimensions LCD: 86 x 86 x 14 mm
• Dimensions of the current unit: 50 x 50 x 35 mm
• Protection class: IP30
• Fan Coil Thermostat not integrateable into switch programs
• Individual weekly program (4 individual switching times per day of the week)
• Mounting in UP-Dose: Horizontal fastening of 60mm

Delivery:

• Fan Coil thermostat for fan convectors with 2- and 4-pipe systems
• User manual in German and English
