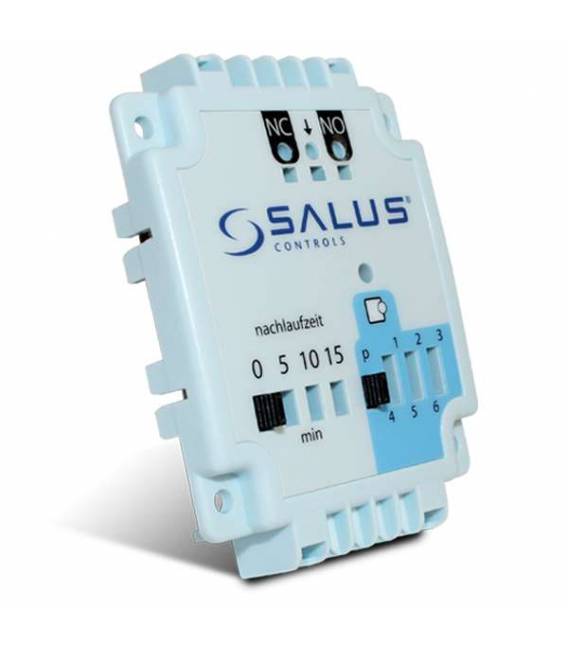

Pump logic module PL06 230V with protective function

Pump logic module PL06 with pump protection function and adjustable follow-up time.

Description

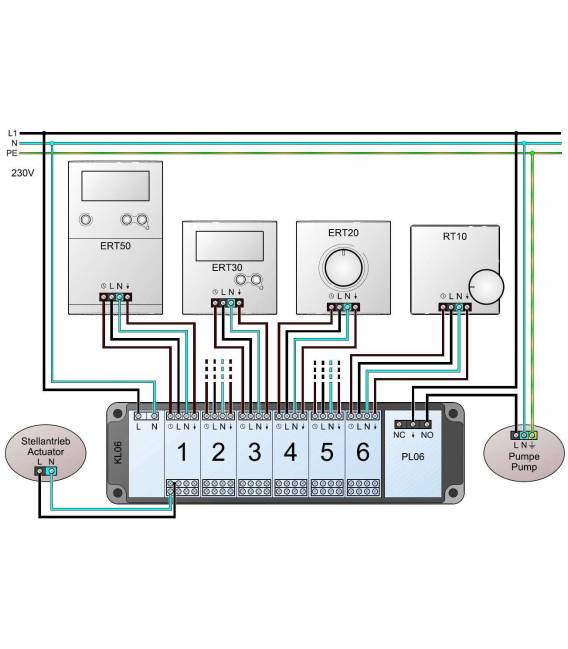

The SALUS pump logic module PL06 is the ideal addition to your SALUS control terminal strip KL06. This allows you to individually control a pump or other electrical equipment.

The assembly is quick and easy:

On the right side of the KL06 control clamping strip loosen the 2 screws, install the pump logic module PL06 and reattach both with the 2 screws.

The SALUS pump logic module PL06 has an integrated pump protection function. By automatically switching on the pump once a day for 5 minutes, the pump is effectively prevented from clamping during longer downtimes.

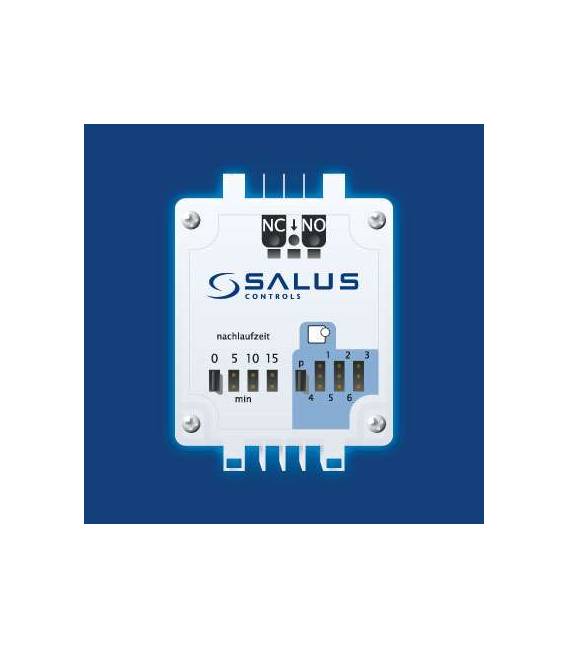

The follow-up time is adjustable by means of jumpers from 0 to 15 minutes in 5 minute steps.

By positioning the jumpers appropriately, you can decide which thermostats to switch the pump. Whether all thermostats or just one type of thermostat: you have the choice.

Properties

• Switches a pump individually according to your specifications
• Potential-free relay
• Adjustable follow-up time
• Pump protection function

Technical data

• Name: Pump logic module PL06
• Operating voltage: 230V AC 50Hz
• Switching current: max. 5A
• Switching contact: potential-free contact
• Cable cross-section flexible cable: 1.0 - 1.5mm2
• Cable cross-section solid cable: 0.5 - 1.5mm2
• Ambient temperature: 0°C - 50°C
• Storage temperature: -25°C - 60°C
• Width: 60mm
• Depth: 20mm
• Height: 80mm
