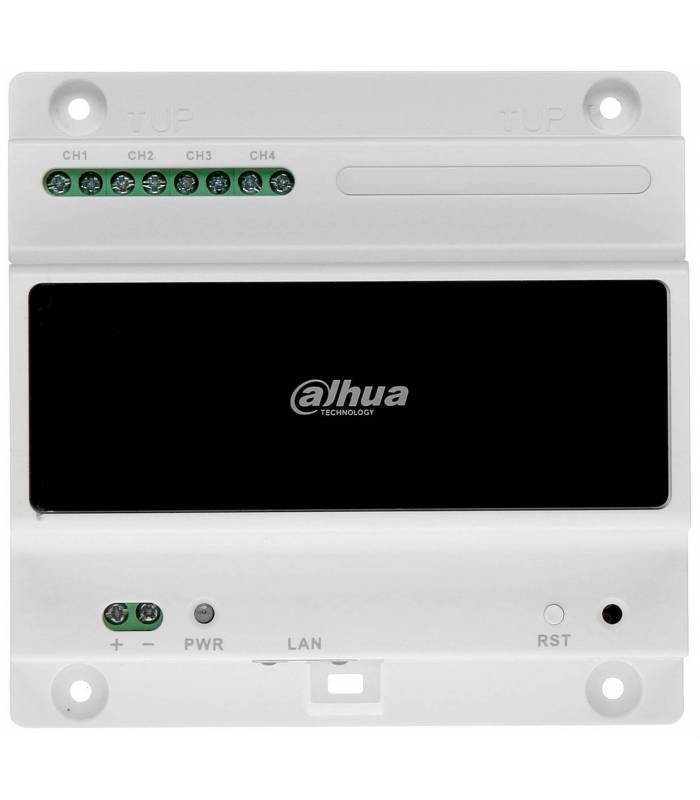

VTNC3000A 2-Wire Network Controller

Network controller for the door intercom

The VTNC3000A network controller allows a maximum of 4 devices to be connected via a 2-wire connection and offers IP functions via the network connection. This turns the door intercom system into a full-fledged IP intercom. The network controller supplies all connected 2-wire components with power and data signals. The data signals are converted and made available via the network connection for control via web or app.

Specifications

• Power supply: 24V DC
• Power consumption: max. 30W at 4 channels under full load
• Ambient temperature: -10°C ~ +55°C at less than 90% humidity

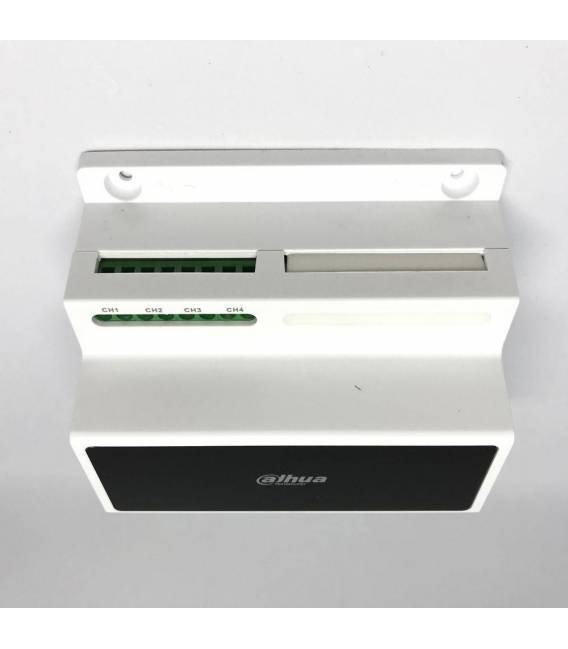

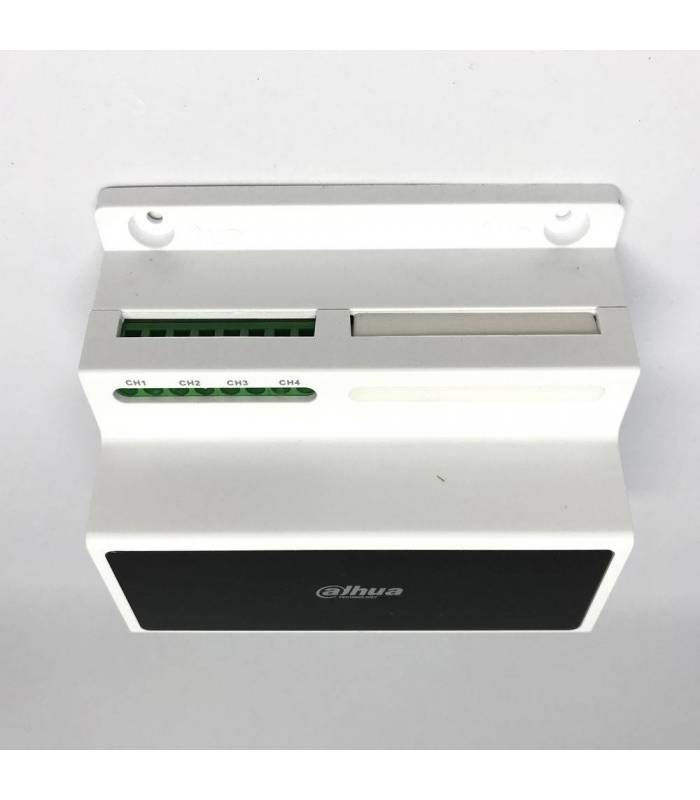

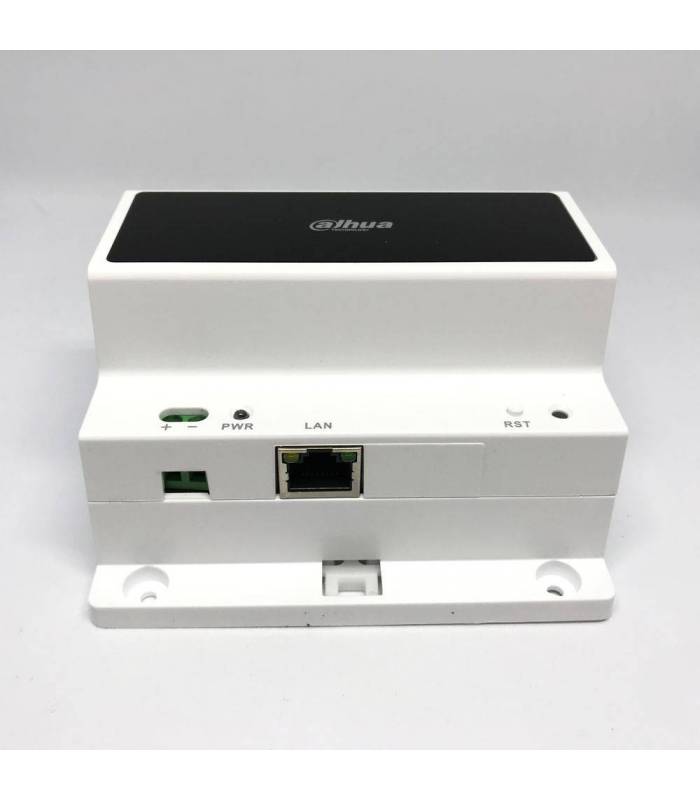

• Connections: RJ45, 4 groups for 2-wire devices
• Dimensions: 108mm x 108mm x 64mm
• Weight: 0,3kg
• Mounting type: surface mounting or DIN rail mounting

Properties

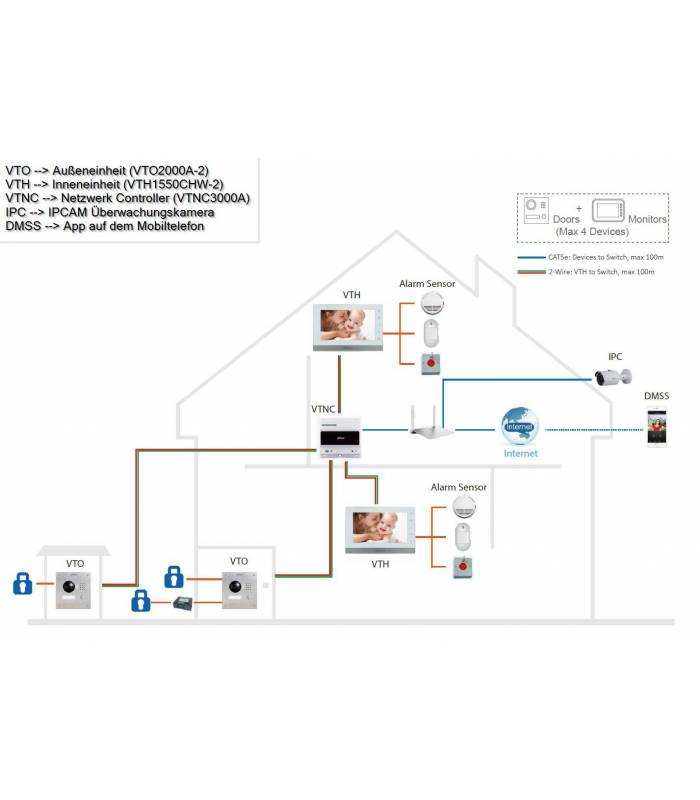

Network controller is the central control of the door intercom system and offers versatile connection options. The following configurations can be created in maximum execution:

1. 1 x Outdoor Unit + 3 x Indoor Units + 1 x Network Controller
2. 2 x outdoor units + 2 x indoor units + 1 x network controller
3. 3 x outdoor units + 1 x indoor unit + 1 x network controller

The configurations shown above form the maximum possible occupancy of the door intercom. For a single-family house, the configuration 1 x outdoor unit + 1 x indoor unit + 1 x network controller can be used.

Warning

Electronic consumers may only be installed by suitably qualified personnel.
